Hereunder we will share two cases about LIANSU dual-station automatic coiler for single wall corrugated tube. How does the same machine adapt to vary materials and processes and solutions?

Cases

Single wall corrugated pipe w/ steel wiring for electric conduit application

Challenges：synchronizing embedded wire feeding, cutting, and retraction control

The common problem for reinforced corrugated tube production: misalignment between wire feeding and forming causes wire kinking during feeding, wire retraction after cutting, and blade breakage of the coiler’s automatic cutter when it severs the steel wire at the preset length.

Solution

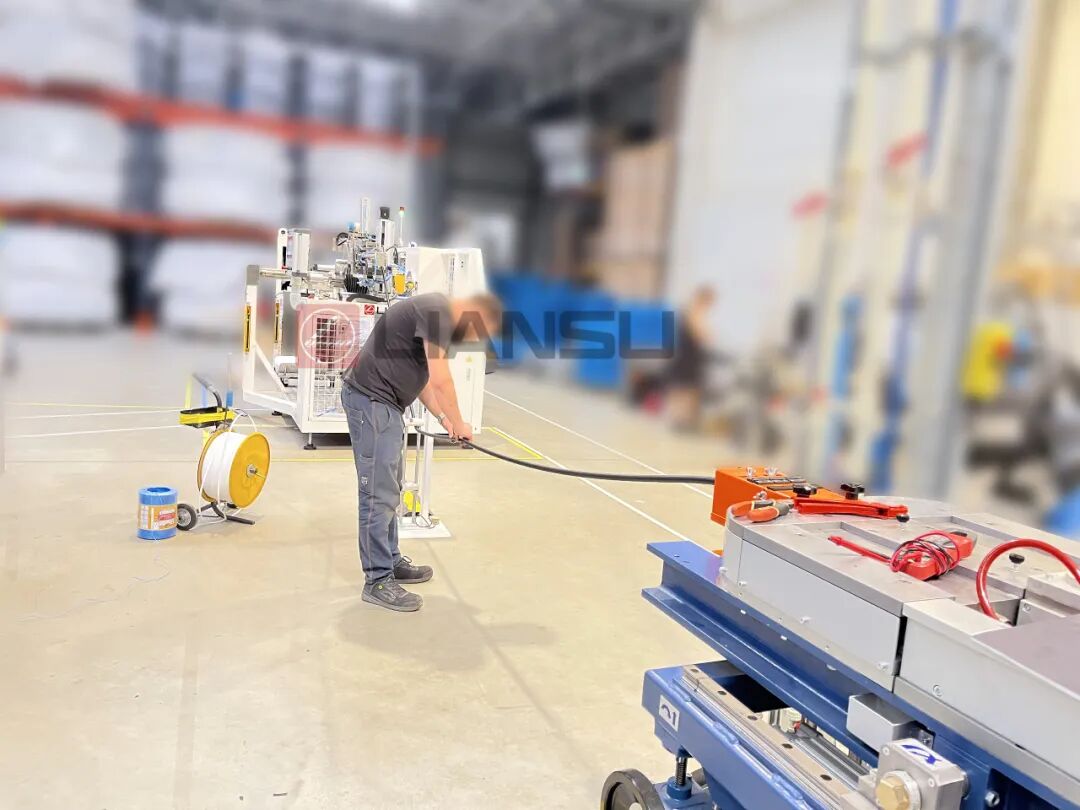

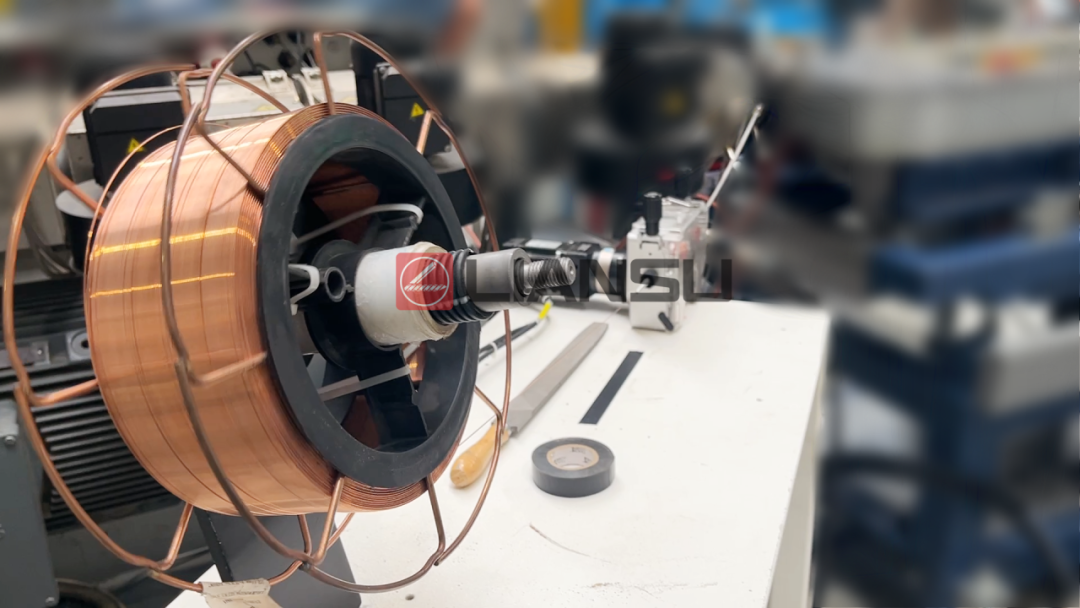

LIANSU Coiler equipped with a dedicated wire feeder and fully servocontrolled. It synchronises forming, feeding, and coiling speeds in real time, ensuring the wire is embedded precisely as the pipe takes shape. The cutting sequence is optimised with precise timing and tension management, eliminating retraction and misalignment. The result is uniformly embedded wire, tight bonding, and consistently stable finished pipe.

Case II

Single wall corrugated tube Slit online (Automotive Industry)

Challenge: slit tube coiling easily causes deformation and wrinkling.

With the rapid adoption of NEVs, slit corrugated pipes are widely used for wiring numerous sensors and actuators due to their convenient and reliable cable routing. However, tube has low rigidity, conventional coiling equipment often produces poor layer alignment due to tension control, tension taper, traverse guidance, and reel sidepositioning issues.

Solution

LIANSU Coiler uses a custom electronic cam curve to dynamically adjust coiling tension and winding pitch according to pipe specifications, enabling smooth, flexible, constantspeed coiling throughout the process. The dualstation independently controlled operation ensures uniform stress on the pipe and neat layer layering, eliminating deformation and misalignment. The result is tight, aesthetically pleasing coils with consistent dimensions.

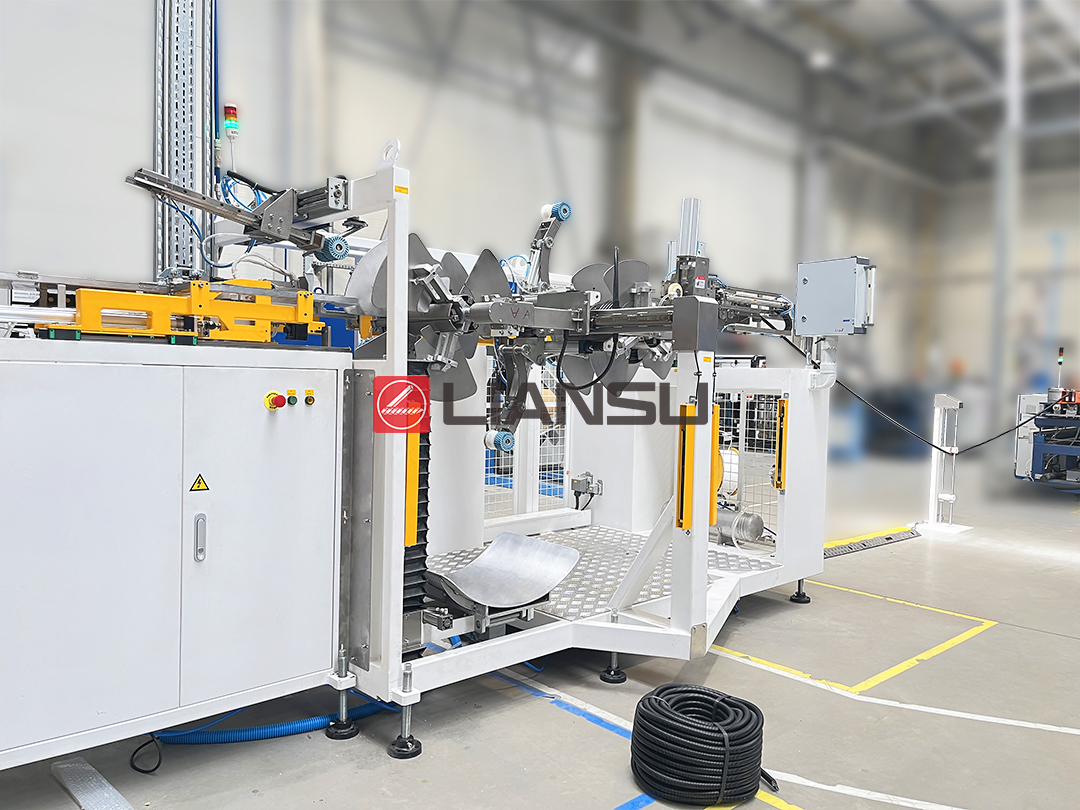

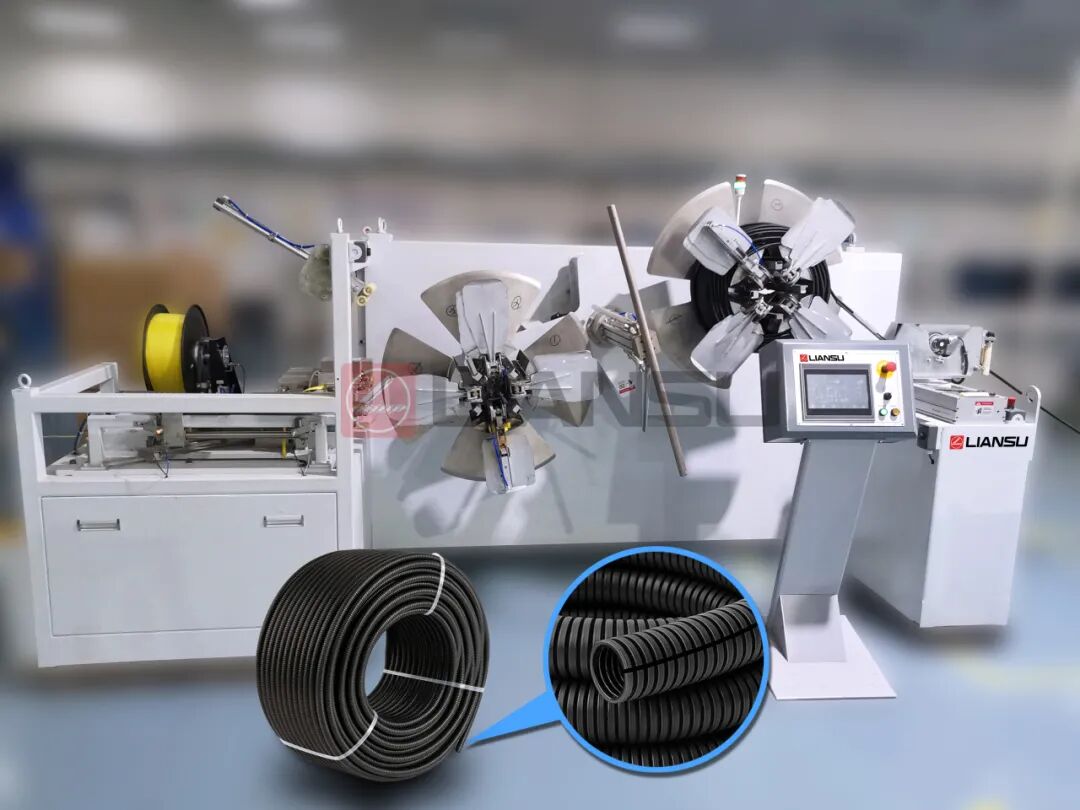

LIANSU Coiler features

Integrated automatic line, no manual intervention, for continuous mass production – lowers labor cost and errors.

• Full automation: pipe feed, clamp, cut, reel change, traverse,dual‑station alternating, reel change without stop, stable output.

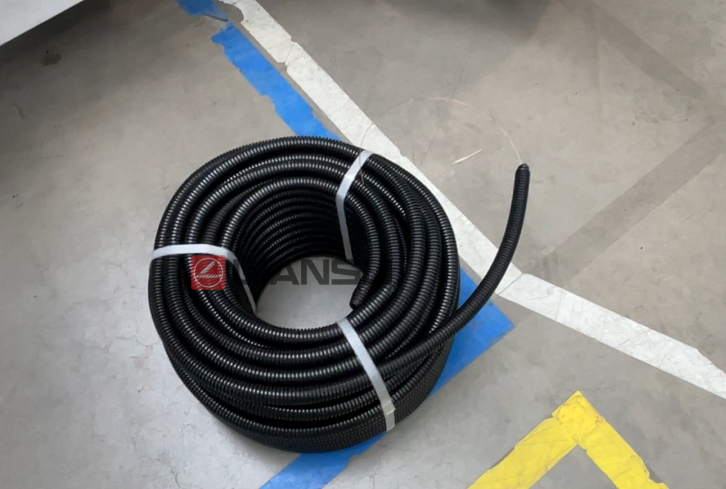

• Strapping: automatic strap feed and tighten, tied at three points, even and firm.

• Unloading: robotic arm, packing + unloading cycle 90s, efficient.

• Drive: full servo control, prevents uneven/off‑center coiling, consistent quality.

Coiler specifications

• Pipe diameter range: Ø16–Ø50 mm corrugated pipe

• Coil inner diameter: Ø175 mm

• Coil outer diameter: Ø400–Ø700 mm

• Max coiling speed: 25 m/min

LIANSU offers customized coiling solutions for corrugated, solid‑wall, or flexible hose. We focus on post‑extrusion automation for clients worldwide, covering both special and standard processes, to ensure smoother and more efficient coiling per meter. Contact us +86-13392775773（WhatsApp）.
